nanoSUS™ 301 | Ultrafine Grain Stainless Steel

Overview & Features

nanoSUS™ is a stainless steel that has ultrafine grained (UFG) microstructures with average grain sizes smaller than 1 μm. Compared to normal material, various property improvements can be expected, such as strength, fatigue properties, and workability by controlling the microstructure.

nanoSUS 301 uses SUS301 raw material, which enables high-strength finish such as EH, and nanoSUS (UFG) is expected to improve fatigue properties and spring properties compared to normal grain size.
We can produce different types of mechanical properties and grain sizes according to your requests and required characteristics. Please contact us for details.

Examples of Applications

Injection Needles, Vibration Motors/Haptics, Micro Oumps, Printer Components, Tact Switches/Membrane Switches, Injectors

Available Shapes

Manufacturable Range (COIL, SHEET)

Thickness

0.010-0.20mm *Contact sales if you need 0.20 mm-0.60 mm

Width

3.0-300mm

Length

COIL or SHEET less than 2000mm

This is the manufacturing range of coils and sheets we manufacture.

Chemical Composition

Physical Properties

Related Pages

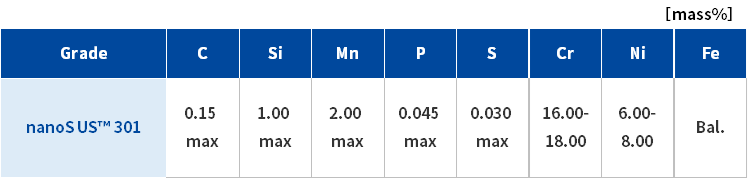

Chemical Composition

Chemical composition is in accordance with JIS SUS301.

Physical Properties

Density

7.93 g/cm³

Specific Heat

502 J/(kg・K)

Electrical Resistivity

72 μΩ・cm

Young's Modulus

193 GPa

Thermal Expansion

16.9×10^-6/K（0～100℃）

Thermal Conductivity

16.3 W/(m・K)

Melting Range

1380-1420 ℃
