TOKKIN™ 301 JIN™ | High-Strength and High-Ductility Stainless Steel

Unique Technologies/High Performance Materials

Unique Technologies

TOKKIN™ 301 JIN™ | High-Strength and High-Ductility Stainless Steel

Overview & Features

By applying our proprietary "JIN™" process to SUS301 material, we have achieved high strength, excellent workability that cannot be obtained with ordinary manufacturing methods.

The surface treatment with our proprietary technology dramatically improves the surface corrosion resistance compared to the conventional SUS301.

Main features of TOKKIN 301 JIN:

(1)Achieving high strength and high ductility simultaneously.
Typical values: Yield Strength(Ys) over 1400 MPa & Elongation(El) over 20%

(2)Surface Corrosion Resistance far Superior to Ordinary SUS301

This material can meet the needs of customers who want to improve workability while maintaining the same strength as SUS301, who don't want to change material composition, or who want to omit precipitation hardening heat treatment of SUS631 or SUS632J1.

Product information dowlnload data sheet or more details on this page.

Examples of Applications

Vibration Motors/Haptics, Hinges, Tact Switches/Membrane Switches

Available Shapes

Manufacturable Range (COIL, SHEET)

Thickness

0.030-0.60mm

Width

3.0-300mm

Length

COIL or SHEET less than 2000mm

This is the manufacturing range of coils and sheets we manufacture.

Chemical Composition

Physical Properties

Mechanical Properties

Corrosion resistance

Related Pages

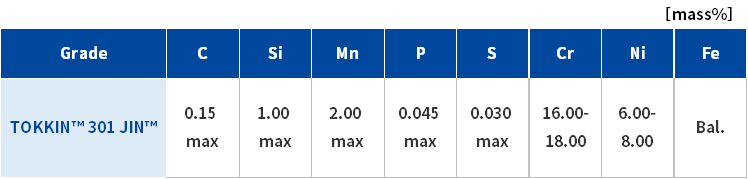

Chemical Composition

Chemical composition is in accordance with JIS SUS301.

Physical Properties

Density

7.93 g/cm³

Specific Heat

502 J/(kg・K)

Electrical Resistivity

72 μΩ・cm

Young's Modulus

193 GPa

Thermal Expansion

16.9×10^-6/K（0～100℃）

Thermal Conductivity

16.3 W/(m・K)

Melting Range

1380-1420 ℃

Magnetism

Weak magnetic

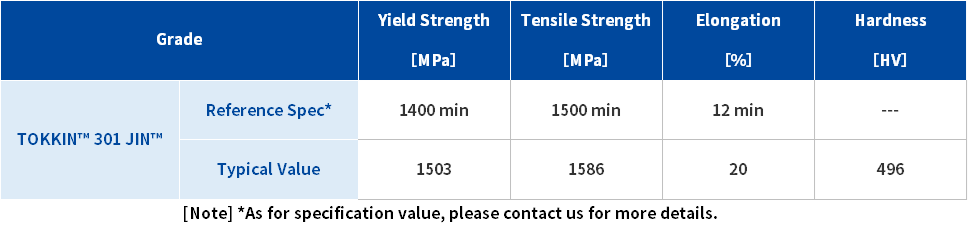

Mechanical Properties

TOKKIN 301 JIN has both high strength and high ductility, and has higher elongation than SUS301 having equivalent yield strength.
The table below shows reference specifications and typical values. Please contact us for specifications.

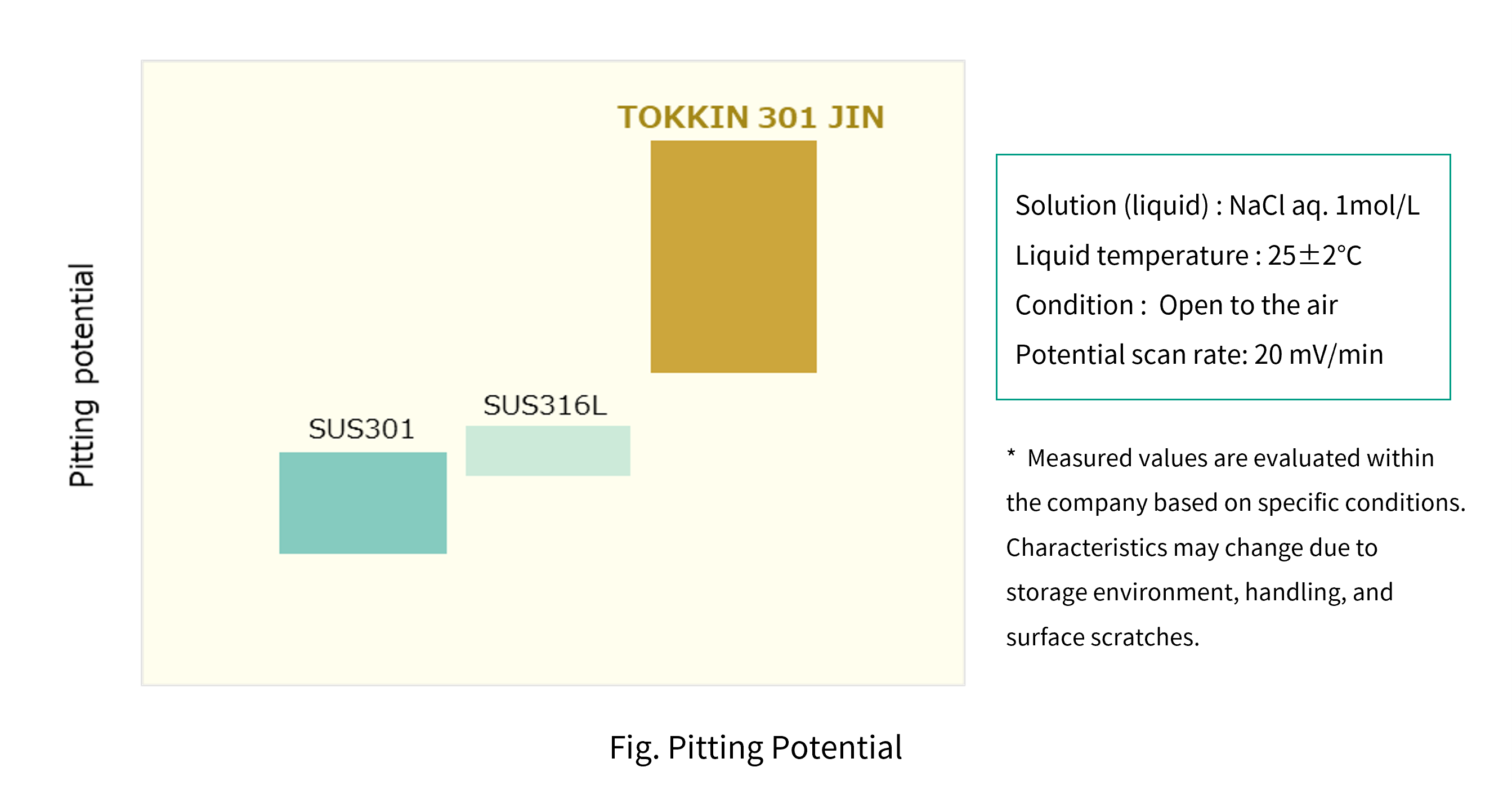

Corrosion resistance

Surface Corrosion Resistance far Superior to Ordinary SUS301.
