SUS301 | Austenitic Stainless Steel
Overview & Features
It is an ideal material for spring parts uses that require durability, such as spiral springs and membrane switches. In addition, its properties of austenitic stainless steel allow the product to be used in a variety of environments without plating to prevent rust.
We supply a variety of stainless steels for springs as specified in JIS G4313.
Please refer to this page for the features and comparison of each grade of stainless steel for springs.
Examples of Applications
Vibration Motors/Haptics, FPC, Tact Switches/Membrane Switches, Hinges, Variable Resistors, Seatbelt Spirals, Injectors, Thickness Gauges
Available Shapes
Manufacturable Range (COIL, SHEET)
Thickness
0.030-2.5mm
Width
3.0-300mm
Length
COIL or SHEET less than 2000mm
This is the manufacturing range of coils and sheets we manufacture.
For inquiries regarding procurement items, please contact us.
Standards
We manufacture in accordance with JIS G4313 standards.
Overseas standards are listed as equivalent or similar to our materials, so please use them as a reference.
JIS
SUS301 (G4313, G4305)
UNS
S30100
AISI/ASTM
301
EN
1.4319
ISO
X5CrNi17-7

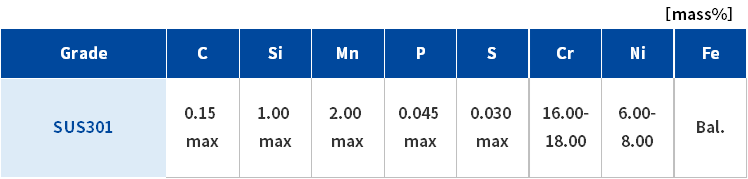

Chemical Composition
Physical Properties
Density
7.93 g/cm³
Specific Heat
502 J/(kg・K)
Electrical Resistivity
72 μΩ・cm
Young's Modulus
193 GPa
Thermal Expansion
16.9×10-6/K（0～100℃）
Thermal Conductivity
16.3 W/(m・K)
Melting Range
1380-1420 ℃
Magnetism
It is non-magnetic in the solution heat-treated state, but becomes weakly magnetic when processed.

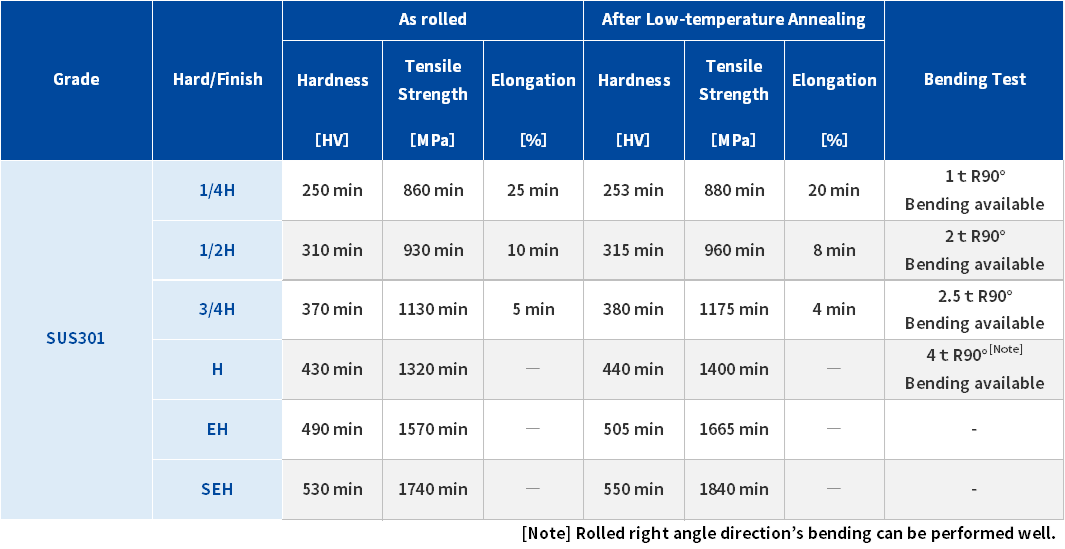

Mechanical Properties
Unless otherwise specified, we manufacture in accordance with JIS standards (table below), but you can also specify stricter standards or custom specifications. *1/4H is not in the current JIS standard, but can be manufactured.
Low-Temperature Annealing
Stainless Steels for springs can be used as rolled, but if strong springiness is required, we recommend low-temperature annealing at about 400°C after part processing.
This low-temperature annealing must be performed after processing. If processing is performed on a product that has already been low-temperature annealed, the effect of low-temperature annealing will be lost.
The best condition for low temperature annealing is heating at［400-420℃ for 1 to 2 hours］ to obtain the best performance.
Depending on product performance, equipment, and working conditions, treatment at 200-450°C for an appropriate amount of time is also acceptable.
low-temperature annealing in the air forms oxide film (golden color) on surface, but this film can be easily removed by slight acidity or mechanical surface treatment.
As noted above, low-temperature annealing at［400-420℃］can obtain the best performance on mechanical properties, but corrosion resistance gets worse. If corrosion resistance is your priority, I recommend heat treatment is performed at under［350℃］.
In addition, if low-temperature annealing is performed with dirty oil, dust, or other foreign matter adhering to the material surface, it may be burned on to the surface of the material. Therefore, it is necessary to clean the surface as much as possible beforehand.

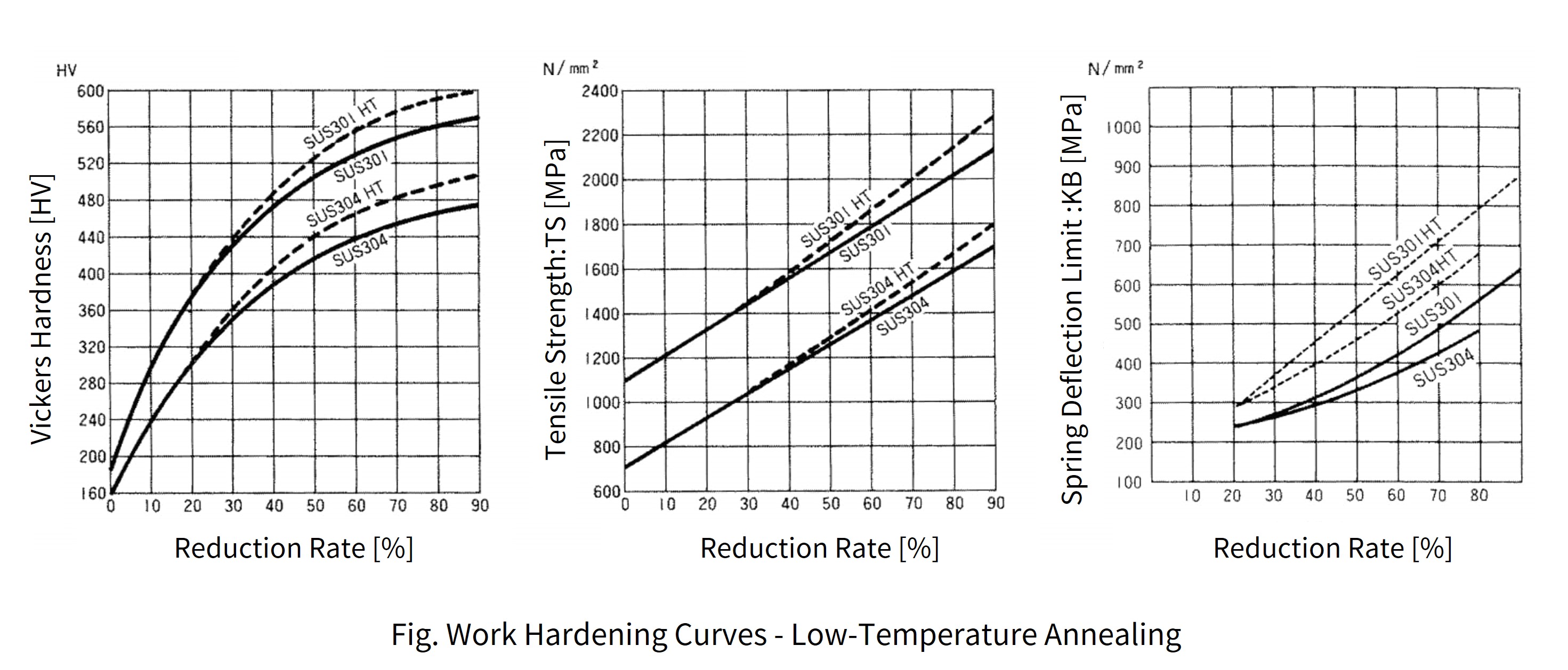

The effect of low-temperature annealing on mechanical properties is shown in the figure below.
Anisotropy
SUS301 s is manufactured by cold rolling and has necessarily anisotropy.
The higher the springiness, the higher the rolling ratio and thus the stronger the anisotropy, so anisotropy should be considered when using the product.
In general, strength (tensile strength, spring limit, yield point, elastic modulus, etc.)
is stronger in the direction perpendicular to the rolling direction and weakest in the direction parallel to it. Elongation shows the opposite trend. Therefore, when selecting a material that will be bent, please make sure that the bending axis is perpendicular to the rolling direction, or at most 45°.
Also, the higher the strength of the material, the less toughness it has and the greater the springback will be, therefore, please consider the processing conditions carefully before use.
