TOKKIN™ 350 JIN™ | High-Strength and High-Ductility Stainless Steel

Unique Technologies/High Performance Materials

Unique Technologies

TOKKIN™ 350 JIN™ | High-Strength and High-Ductility Stainless Steel

Overview & Features

By applying our proprietary "JIN™" process to our own grade TOKKIN 350 material, we have achieved high strength, excellent workability, and high reliability that cannot be obtained with ordinary manufacturing methods.

Main features of TOKKIN 350 JIN:

(1)Both High Strength and High Ductility
Typical values: Yield Strength(Ys) over 1500 MPa & Elongation(El) over 20%

(2)Low Mechanical Anisotropy
Greater flexibility in part design and stamping

(3)No Heat Treatment required after processing
Dimensional changes due to heat treatment are eliminated and dimensional accuracy is stabilized.

(4)Higher corrosion resistance than SUS316L
This material can meet the needs of customers who want to improve workability while maintaining the same strength as SUS301, or who want to omit precipitation hardening heat treatment of SUS631 or SUS632J1.

Dowlnload data sheet or more details on this page.

Examples of Applications

Vibration Motors/Haptics, Hinges, Tact Switches/Membrane Switches

Available Shapes

Manufacturable Range (COIL, SHEET)

Thickness

0.030-0.60mm

Width

3.0-300mm

Length

COIL or SHEET less than 2000mm

This is the manufacturing range of coils and sheets we manufacture.

Chemical Composition

Physical Properties

Mechanical Properties

Corrosion resistance

Download Technical Data

Related Pages

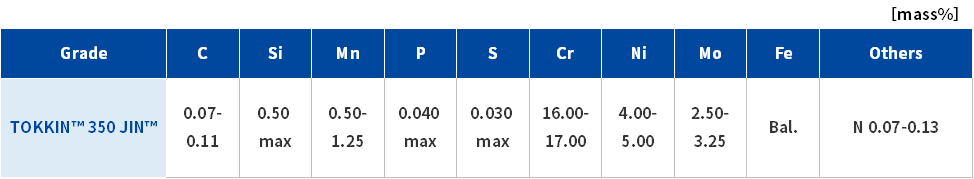

Chemical Composition

Physical Properties

Annealed Condidtion

Density

7.92 g/cm³

Specific Heat

461 J/(kg・K)

Electrical Resistivity

79 μΩ・cm

Thermal Expansion

15.2×10^-6/K (25～100℃)

Thermal Conductivity

15.4 W/(m・K) (100℃)

Mechanical Properties

TOKKIN 350 JIN has both high strength and high ductility.

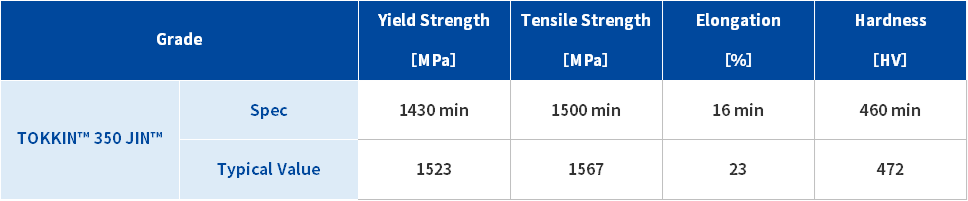

Specifications and typical values of mechanical properties are shown in the table below.
Tensile testing video comparing TOKKIN 350 JIN with common SUS301 is available on this page.

Corrosion resistance

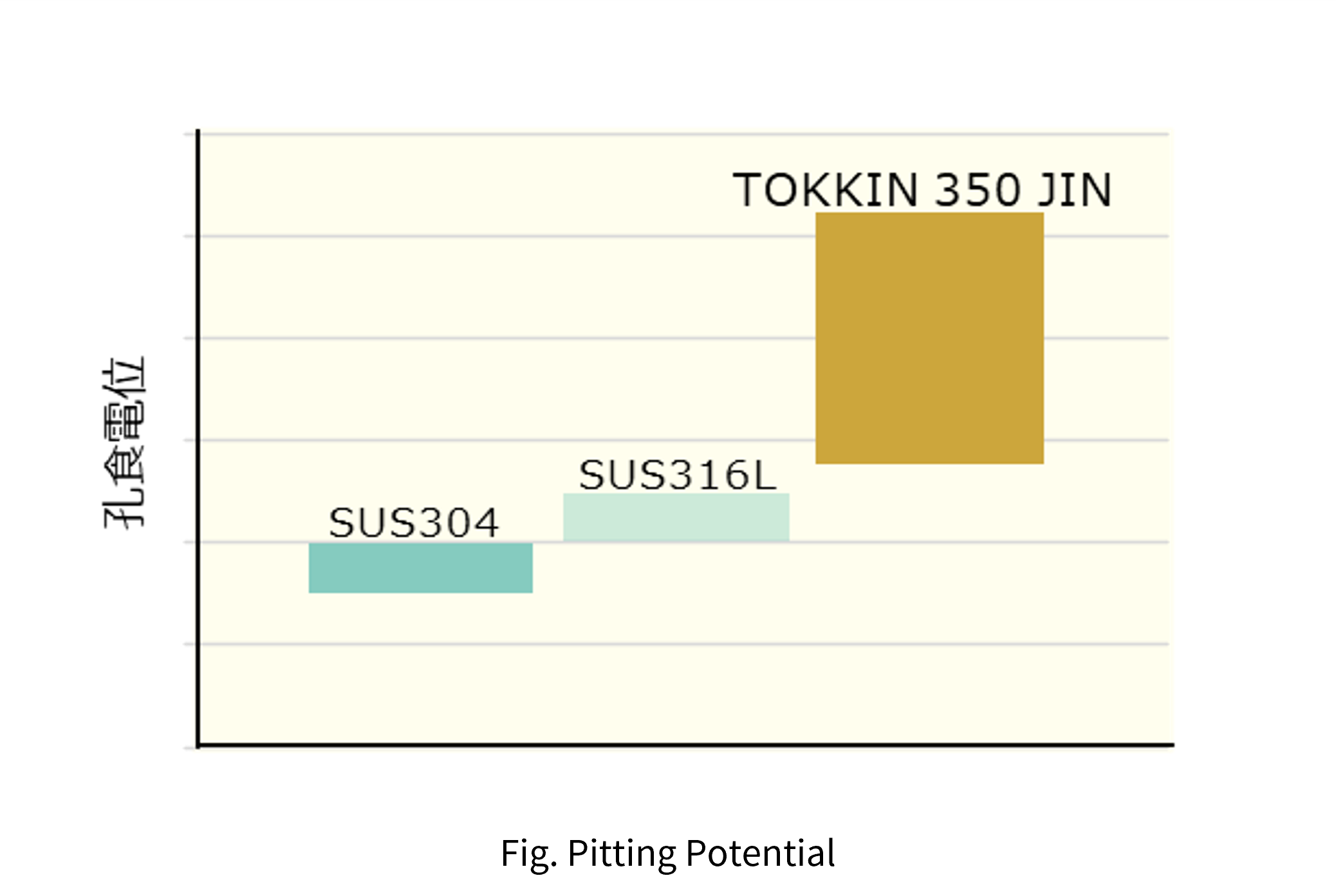

TOKKIN 350 JIN has higher corrosion resistance than SUS316L.

Download Technical Data

TOKKIN 350JIN Technical Data

Please click on the button to proceed to the download.

Japanese-English

Chinese(中文)-English
