SUS632J1 (15-7PH) | Precipitation Hardening Stainless Steel

Overview & Features

The solution heat-treated state (austenite phase) of SUS631 is soft and can be processed in various ways, but requires two or more heat treatments of martensitization and precipitation hardening to increase its strength.
Because SUS632J1 is always in martensitic phase with or without solution treatment, it can be strengthened with only one precipitation hardening heat treatment.
Solution heat-treated or cold rolled finish can be selected, Rolling finish provides higher strength, but not as high as that of SUS631.This steel grade exhibits strong magnetism in all states.
Solution heat-treated materials, although a martensitic phase, can be lightly processed because of to its low carbon content and toughness.
Also, because there is little variation in strength at welded portion, it is sometimes used in applications where welding is involved, such as steel belts.

TOKKIN supplies a variety of stainless steels for springs as specified in JIS G4313.
Please refer to this page for the features and comparison of each grade of stainless steel for springs.

Examples of Applications

Steel Belt, Bandsaws, Mask Frame Springs, Vibration Motors/Haptics, Springs

Available Shapes

Manufacturable Range (COIL, SHEET)

Thickness

0.030-2.0mm

Width

3.0-300mm

Length

COIL or SHEET less than 2000mm

This is the manufacturing range of coils and sheets we manufacture.

Standard

Chemical Composition

Physical Properties

Mechanical Properties

Heat Treatment

Related Pages

Standards

We manufacture in accordance with JIS G4313 standards.

JIS

SUS632J1 (G4313, G4305)

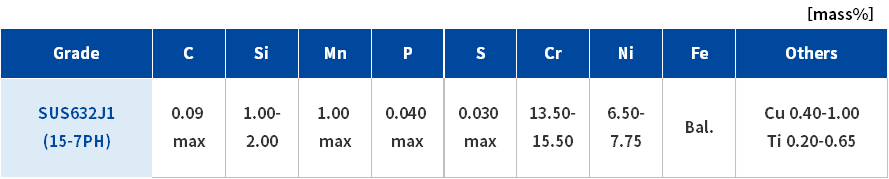

Chemical Composition

Physical Properties

Density

7.74 g/cm³

Specific Heat

502 J/(kg・K)

Electrical Resistivity

100 μΩ・cm

Young's Modulus

196 GPa

Thermal Expansion

10.9×10^-6/K（0～100℃）

Thermal Conductivity

15.9 W/(m・K) (100℃)

Magnetism

Strong

Mechanical Properties

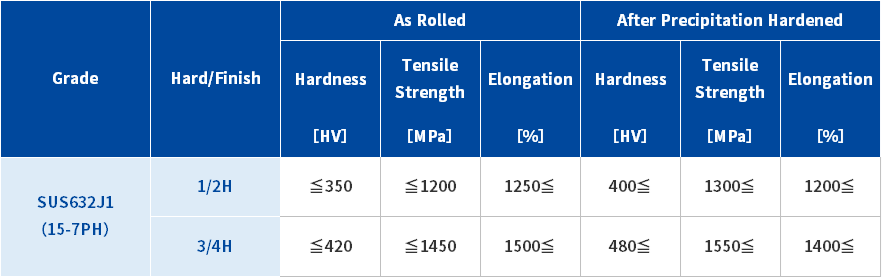

Unless otherwise specified, we manufacture in accordance with JIS standards (see table below), but you can also specify stricter standards or custom specifications.

Heat Treatment

Age hardening(Precipitation Hardening) can be performed on SUS632J1.
Regardless of temper, precipitation hardening should be perform at 480℃ for 1 hour.

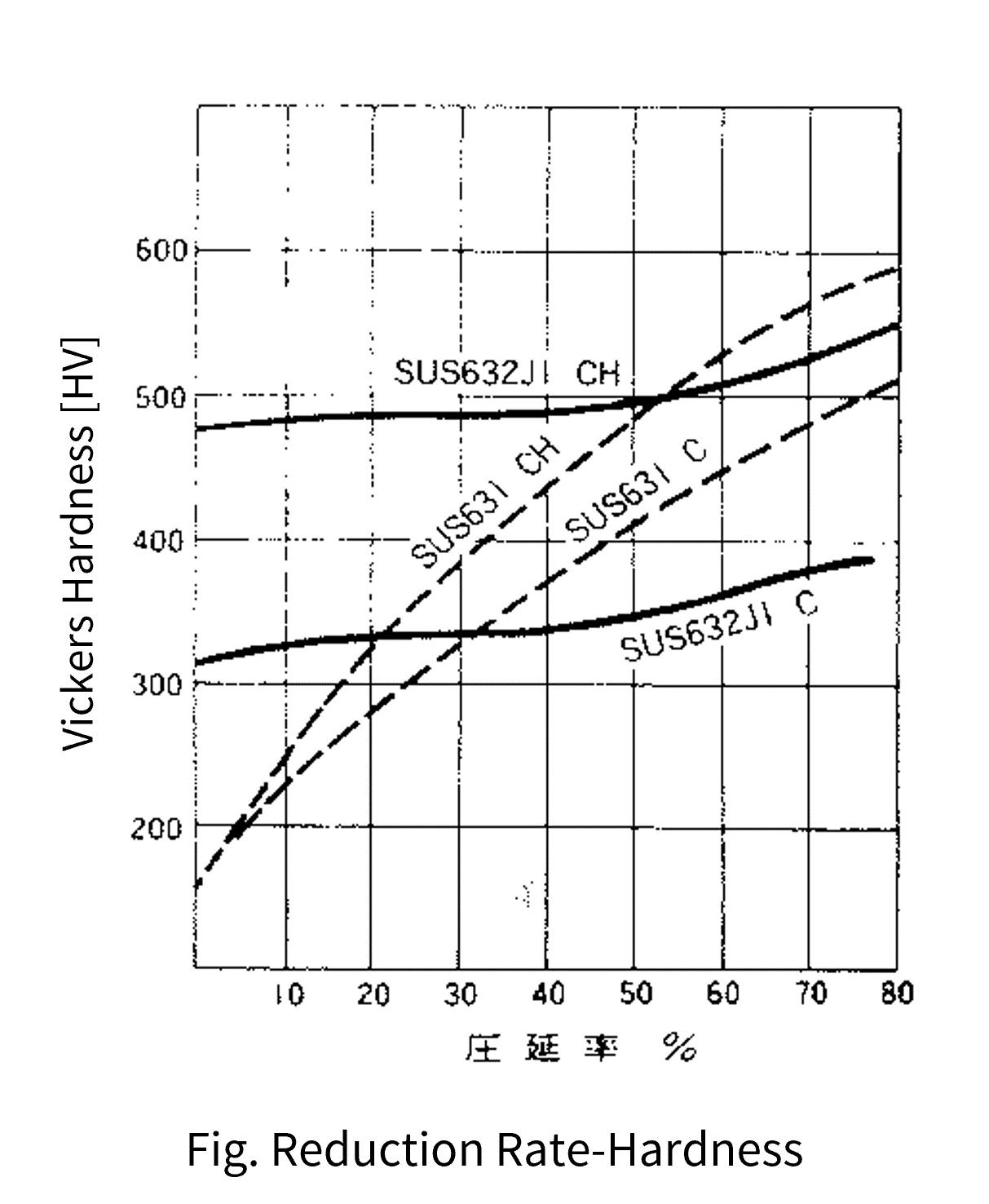

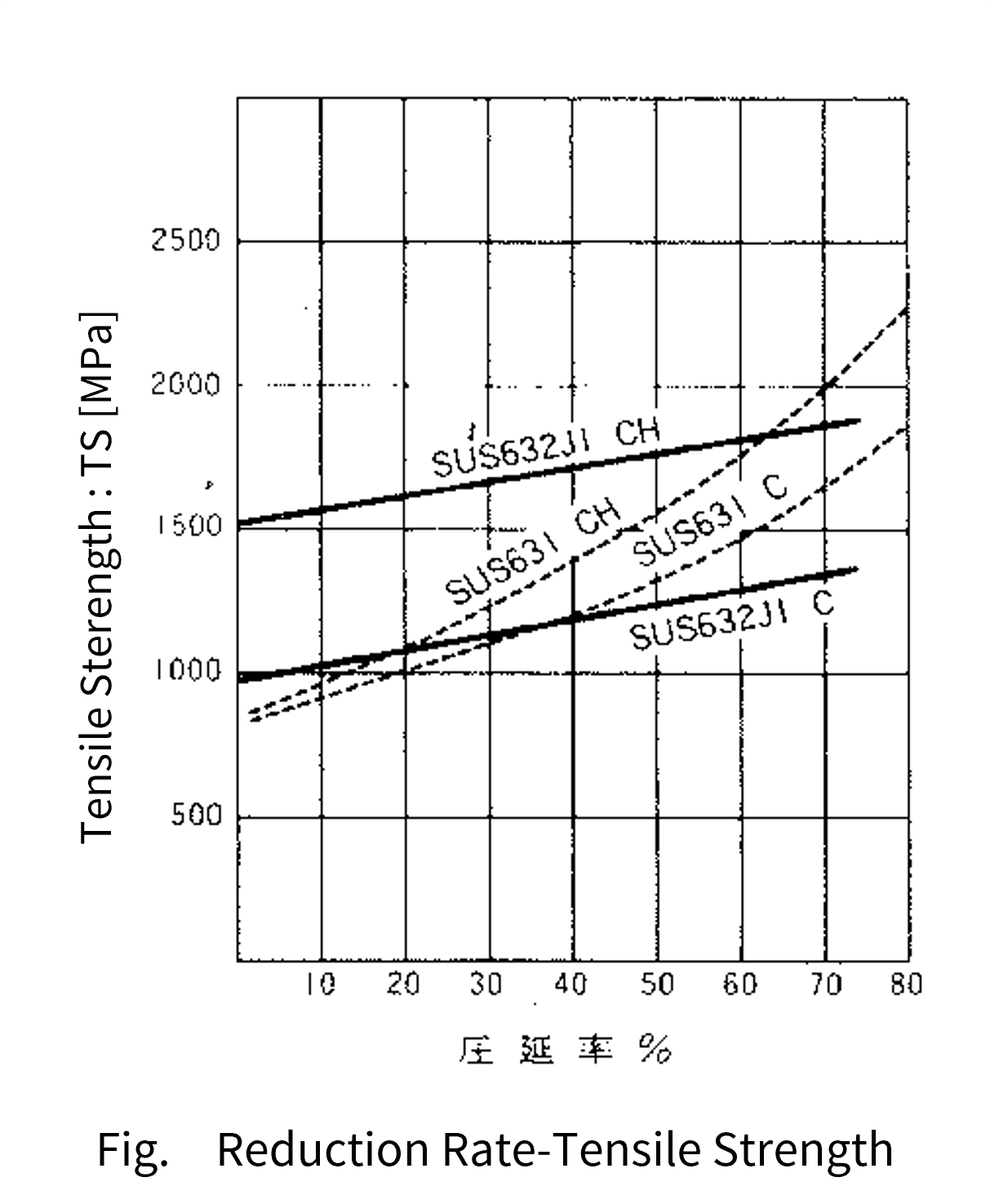

Please see the figure below for mechanical properties resulting from heat treatment .
