Stainless Steels
Austenitic
SUS316L | Austenitic Stainless Steel
Overview & Features
This grade is difficult to find sources due to low volume in circulation among general-purpose stainless steels, but we can supply it in foils, special dimension, and small lots.
*The "L" in SUS316L stands for low carbon.
Examples of Applications
Vibration Motors/Haptics, Camera Module, FPC, Fuel Cell, Syringe Needles, Indwelling Needles, Bellows, Diaphragmss, Micro Pumps, Stent
Available Shapes
Manufacturable Range (COIL, SHEET)
Thickness
0.010-2.0mm
Width
3.0-300mm
Length
COIL or SHEET less than 2000mm
This is the manufacturing range of coils and sheets we manufacture.
For inquiries regarding procurement items, please contact us.
Standards
Unless otherwise specified, we manufacture in accordance with JIS standards.
Overseas standards are listed as equivalent or similar to our materials, so please use them as a reference.
JIS
SUS316L (G4305)
UNS
S31603
AISI/ASTM
316L
EN
1.4404
1.4432
1.4435
ISO
X2CrNiMo17-12-2
X2CrNiMo17-13-3
X2CrNiMo18-14-3

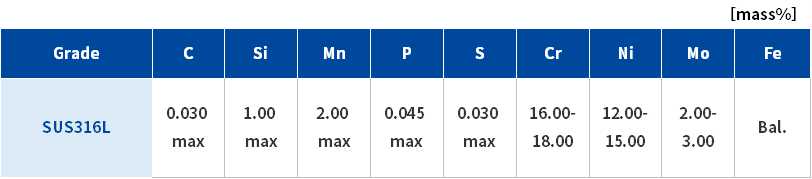

Chemical Composition
Physical Properties
Density
8.03 g/cm³
Specific Heat
502 J/(kg・K)
Electrical Resistivity
74 μΩ・cm
Young's Modulus
193 GPa
Thermal Expansion
16.0×10-6/K（0～100℃）
Thermal Conductivity
16.3 W/(m・K)
Magnetism
It is non-magnetic in the solution heat-treated state, but becomes weakly magnetic when processed.

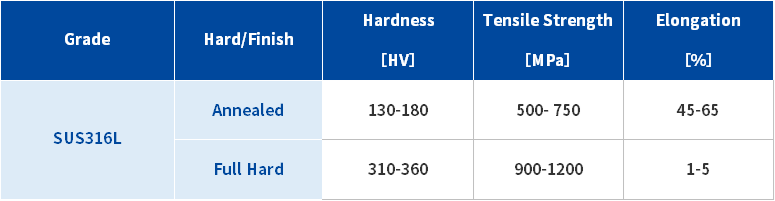

Mechanical Properties
The table below shows approximate values of mechanical properties for annealed finish and full hardened finish.
We can manufacture products in the desired hardness (finish) between annealed finish and full hardened finish, but some finishes may not be available depending on the plate thickness, so please contact us first.
*For ultra-thin foil, soft materials such as annealed or 2B finish may not be applicable due to concerns about defects (folding, wrinkling, etc.).
