SUS316 | Austenitic Stainless Steel

Overview & Features

SUS316 is a steel grade with increased nickel and added molybdenum to SUS304, a typical austenitic stainless steel.
These chemical components adjustment provides better corrosion resistance than SUS304 to various mediums, including seawater.
This grade is relatively less commonly circulated among general-purpose stainless steels, making it a less readily available material, but we can supply it in foils, special dimensions, and small lots.

Examples of Applications

Vibration Motors/Haptics, Camera Module, FPC, Fuel Cell, Syringe Needles, Indwelling Needle, Micropump, Stent, Bellows, Diaphragms

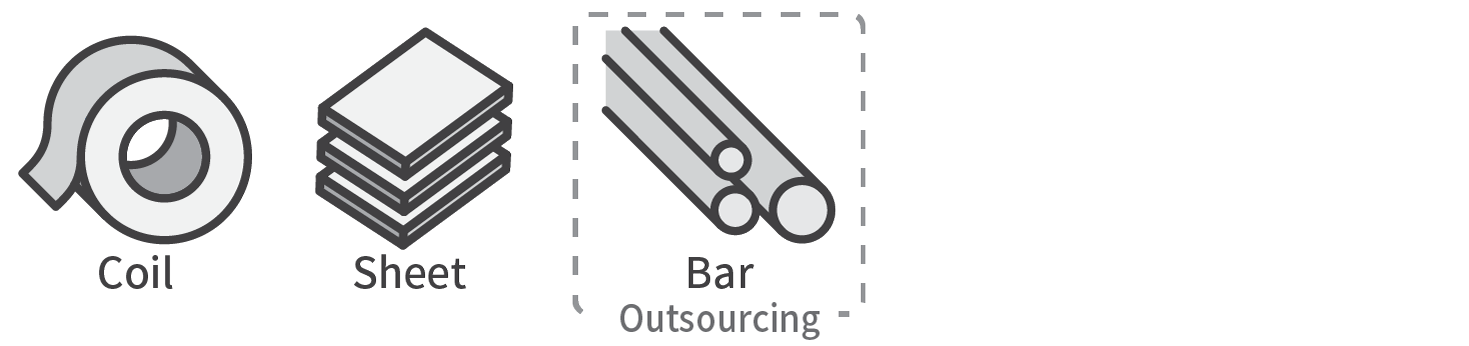

Available Shapes

Manufacturable Range (COIL, SHEET)

Thickness

0.010-3.0mm

Width

3.0-300mm

Length

COIL or SHEET less than 2000mm

This is the manufacturing range of coils and sheets we manufacture.
For inquiries regarding procurement items, please contact us.

Standard

Chemical Composition

Physical Properties

Mechanical Properties

Standards

Unless otherwise specified, we manufacture in accordance with JIS standards.
Overseas standards are listed as equivalent or similar to our materials, so please use them as a reference.

JIS

SUS316 (G4305)

UNS
AISI

S31600
316

1.4401

ISO

4401-316-00-I, X5CrNiMo17-12-2

S31608, 06Cr17Ni12Mo2

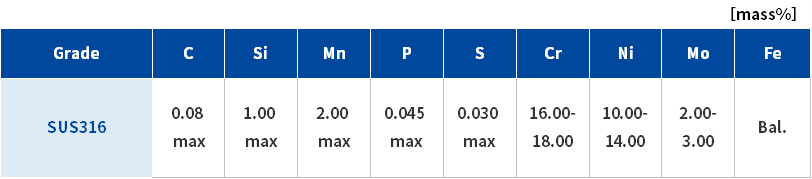

Chemical Composition

Physical Properties

Density

8.03 g/cm³

Specific Heat

502 J/(kg・K)

Electrical Resistivity

74 μΩ・cm

Young's Modulus

193 GPa

Thermal Expansion

16.0×10^-6/K（0～100℃）

Thermal Conductivity

16.3 W/(m・K)

Melting Range

1370-1397 ℃

Magnetism

It is non-magnetic in the solution heat-treated state, but becomes weakly magnetic when processed.

Mechanical Properties

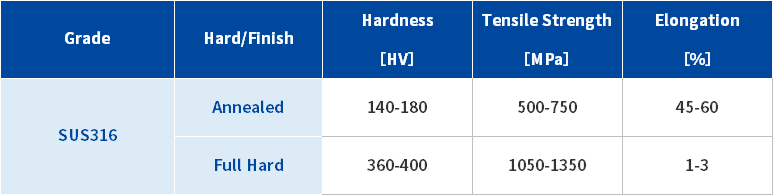

The table below shows approximate values of mechanical properties for annealed finish and full hardened finish.
We can manufacture products in the desired hardness (finish) between annealed finish and full hardened finish, but some finishes may not be available depending on the plate thickness, so please contact us first. *For ultra-thin foil, soft materials such as annealed or 2B finish may not be applicable due to concerns about defects (folding, wrinkling, etc.).
