Stainless Steels
Martensitic
Main features of SUS420J2:
(1) Suitable for Wear and Heat Resistant Applications.Puncture Needles (lancets), Medical knives / Hairdressing knives, Hinges, Thomson Blades/Pinnacle Blades, Doctor Blades, Scale, reed, Spinning Machine, Soldering Irons, Scrapers, Springs
Thickness
0.030-2.5mm
Width
3.0-300mm
Length
COIL or SHEET less than 2000mm
This is the manufacturing range of coils and sheets we manufacture.
We manufacture in accordance with JIS G4313 standards.
Overseas standards are listed as equivalent or similar to our materials, so please use them as a reference.
JIS
SUS420J2 (G4313, G4305)
UNS
AISI
S42000
420
EN
1.4028
ISO
4028-420-00-I, X30Cr13
GB
S42030, 30Cr13
Density
7.75 g/cm³
Specific Heat
460 J/(kg・K)
Electrical Resistivity
55 μΩ・cm
Young's Modulus
200 GPa
Thermal Expansion
10.3×10-6/K(0~100℃)
Thermal Conductivity
24.7 W/(m・K)
Melting Range
1454-1510 ℃
Magnetism
Strong

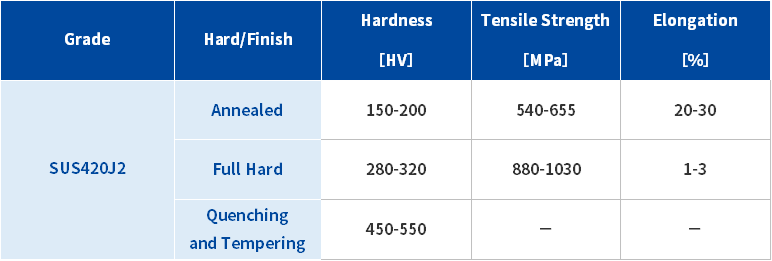

We can manufacture according to your desired hardness between annealed to full hardened as shown in the table below.(The hardness of hardened steel strip is to be discussed each by each)
Some finishes may not be available depending on the thickness of the sheet, so please consult with us first.
*For ultra-thin foil, soft materials such as annealed or BA finish may not be applicable due to concerns about defects (folding, wrinkling, etc.).
SUS420J2 can be hardened by quenching and tempering.
The max quenched hardness is [589-640HV].
Please select tempering temperature according to required hardness and toughness by referencing quenching and tempering curve.
Material which is used to make various blades such as razor blades, shaver blades, and medical blades. Depending on the application and required properties, you can choose from a variety of options such as high carbon steel or martensitic stainless steel.
They have a high carbon content and can acquire extremely high strength if quenched after stamping.
We provide quenched stainless steel strips.
This materials are possible to increase their hardness by rolling, they can be used as spring parts.
