HC-276 (Equivalent Hastelloy C276)

Nickel, Cobalt, and Titanium Alloys

Nickel Alloys

HC-276 (Equivalent Hastelloy C276)

Overview & Features

HC-276 has resistance to wide range of corrosive environments and its welded portions also have good corrosion resistance. It is also used in applications requiring strength in high temperatures.
We provide Hastelloy C276 or its equivalent material.

Examples of Applications

Bellows, Diaphragms, etc.

Available Shapes

For inquiries regarding procurement items (Pipes, bars, Wires etc.), please contact us.

Manufacturable Range (COIL, SHEET)

Thickness

0.020-1.00mm

Width

3.0-300mm

Length

COIL or SHEET less than 2000mm

This is the manufacturing range of coils and sheets we manufacture.

Standards are listed as equivalent or similar to our materials, so please use them as a reference.

UNS

N10276

ASTM

B575

JIS

NW0276(G4901-Bar/G4902-Strip, Sheet)

Density

8.89 g/cm³

Specific Heat

427 J/(kg・K) (21℃)

Electrical Resistivity

130 μΩ・cm (21℃)

Young's Modulus

205 GPa

Thermal Expansion

11.2×10-6/K (20~100℃)

Thermal Conductivity

10.2 W/(m・K) (21℃)

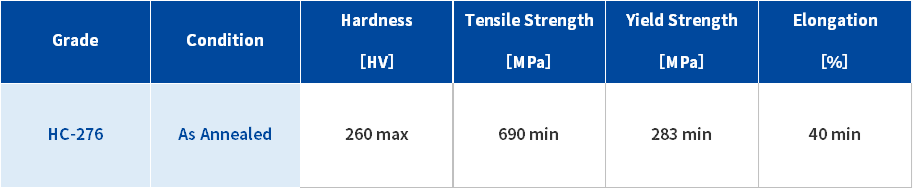

Mechanical properties in the annealed condition are as follows

Superalloys(Nickel, Cobalt, and Titanium Alloys)

Materials based on Ni, Co, and Ti are superior to stainless steel in terms of corrosion resistance and heat resistance. In addition to cold-rolled strips manufactured by our company, we also provide thick plates, wires, bars, and ultra-thin pipes sourced from domestic and overseas partner companies for you.

Metal Foils (Under t0.10mm)

We can produce foil materials in all the materials we manufacture, from stainless steel, low carbon steel, high carbon steel, and other steel materials to nonferrous metals such as nickel alloys, cobalt alloys, and copper alloys.

Materials for Bellows

We manufacture TOKKIN 350 and various other metals for bellows, and we can propose materials and specifications according to required properties such as strength, corrosion resistance, and heat resistance.
