HC-22 (Equivalent Hastelloy C22) - UNS N06022

Non-Magnetism

High Corrosion Resistance

Product Lineup

Product Information

Request a Quote/Samples

Overview & Features

HC-22 has excellent overall corrosion resistance among Ni-Cr-Mo alloys.
It has extremely excellent resistance to reducing and oxidizing corrosive environments, and is used in applications where reduction and oxidation are repeated.
We provide Hastelloy C22 or its equivalent material.

Examples of Applications

Bellows, Fuel Gas Desulfurization Equipment

Available Shapes

For inquiries regarding procurement items (Pipes, bars, Wires etc.), please contact us.

Manufacturable Range (COIL, SHEET)

Thickness

0.020-1.00mm　　

Width

3.0-300mm

Length

COIL or SHEET less than 2000mm

This is the manufacturing range of coils and sheets we manufacture.

Standard

Chemical Composition

Physical Properties

Mechanical Properties

Download Technical Data

Standards

Standards are listed as equivalent or similar to our materials, so please use them as a reference.

UNS
ASTM

N06022
B575

JIS

NW6022 - G4902 (Strip, Sheet)

ISO

NW6022, NiCr21Mo13Fe4W3

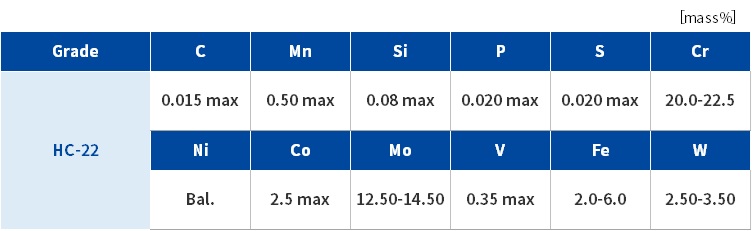

Chemical Composition

Physical Properties

Density

8.69 g/cm³

Specific Heat

414 J/(kg・K) (21℃)

Electrical Resistivity

114 μΩ・cm (21℃)

Young's Modulus

206 GPa

Thermal Expansion

12.4×10^-6/K(20～100℃)

Thermal Conductivity

11.1 W/(m・K) (21℃)

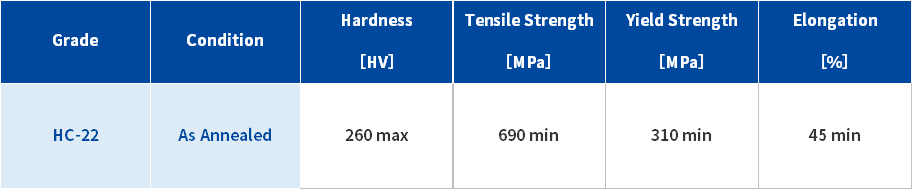

Mechanical Properties

Mechanical properties in the annealed condition are as follows

Download Technical Data
