S45CM | Carbon Steel

Overview & Features

S45C is a medium carbon steel with a Carbon content of about 0.45% It has a lower Carbon content than carbon tool steel and is less restrictive on impurities, making it suitable for general applications that require a certain degree of strength and toughness.
Although it is possible to increase strength by quenching and tempering after stamping or other processing, because the Carbon content is not high, so the increase in hardness due to quenching is not as high as that of carbon tool steels.

Examples of Applications

Watch Parts, Automotive Parts, Washers（Metal Washers）, Office Machines, Electric, Machinery Structural Parts and Springs, Clutch Parts, Thompson Blades, Bearing Parts

Available Shapes

Manufacturable Range (COIL, SHEET)

Thickness

0.10-2.0mm

Width

3.0-300mm

Length

COIL or SHEET less than 2000mm

This is the manufacturing range of coils and sheets we manufacture.

Standard

Chemical Composition

Physical Properties

Quenching and Tempering

Standards

Unless otherwise specified, we manufacture in accordance with JIS standards.
［note 1］"M" at the end of JIS steel grade symbol means steel grade corresponding to JIS G3311 Cold rolled special steel strip, and M may be abbreviated in some cases.

Overseas standards are listed as equivalent or similar to our materials, so please use them as a reference.

JIS

S45CM (G3311), S45C (G4802)

AISI/SAE

1045

C45, C45E, C45R

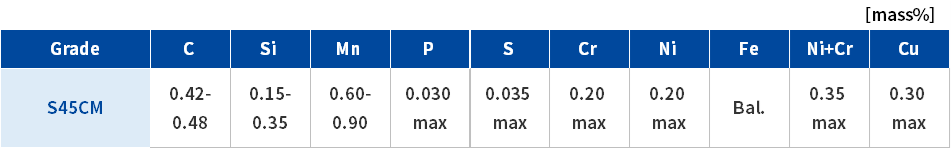

Chemical Composition

Physical Properties

The following values are typical values for high carbon steel(Fe-0.8C).

Density

7.84 g/cm³

Specific Heat

490 J/(kg・K)

Electrical Resistivity

18 μΩ・cm

Young's Modulus

208 GPa

Thermal Expansion

11.0×10^-6/K（0～100℃）

Thermal Conductivity

50.2 W/(m・K)

Magnetism

Strong

Quenching and Tempering

S45C is a steel grade that can be quenched.
The general quenching condition is ［Water cooling at 800～860℃ ］.
After holding for tens of seconds to several minutes depending on sizes, shapes, required properties, and quenching method, cooling is performed.
Water cooling is harder to quench, but due to the risk of quenching distortion and quench cracking, oil cooling may be used in some cases.
Please select tempering temperature according to required hardness and toughness by referencing quenching and tempering curve.(Quenching and tempering curve of S60C is below for reference purposes. )

Cold Rolled Special Steel Strips

We manufacture carbon steel (SC material) and carbon tool steel (SK material) that conform to "JIS G 3311 Cold Rolled Special Steel Strip" and "JIS G 4802 Cold Rolled Steel Strip for Springs", as well as our own composition-adjusted steel grades for special applications.
