NCH-1 | Electrical Heating Alloys

Non-Magnetism

Heat Resistance

High Corrosion Resistance

Product Lineup

Product Information

Request a Quote/Samples

Overview & Features

NCH-1 has excellent oxidation resistance and high temperature strength. It should be avoided using in sulfuric acid gas or hot and humid reducing atmospheres.

Examples of Applications

Heaters (surface heating element), E-cigarettes, Sealers

Available Shapes

Manufacturable Range (COIL, SHEET)

Thickness

0.040-1.8mm

Width

3.0-300mm

Length

COIL or SHEET less than 2000mm

This is the manufacturing range of coils and sheets we manufacture.

Standard

Chemical Composition

Physical Properties

Mechanical Properties

Standards

Unless otherwise specified, we manufacture in accordance with JIS standards.
Overseas standards are listed as equivalent or similar to our materials, so please use them as a reference.

JIS

NCHRW1 (C2520)

DIN

NiCr8020, 2.4869

Cr20Ni80

Other names

ISA-CHROM 80

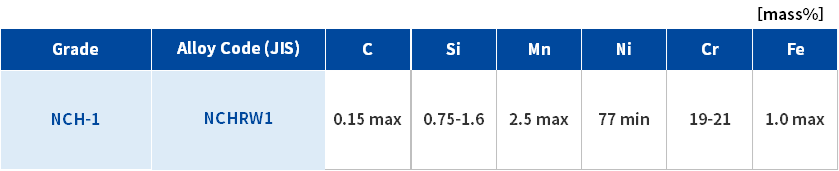

Chemical Composition

Physical Properties

Density

8.4 g/cm³

Volume Resistivity

1.08 μΩ･m

Temperature Coefficient of Resistance

50 ppm/K (23-100℃)

Maximum Ambient Temperature

1100℃

Magnetism

Non-magnetism

Mechanical Properties

The hardness of the annealed finish is [under 250 HV ], but we can provide hard materials upon your request.

*In the case of ultra-thin foil, soft materials such as annealed and 2B finish may not be available due to concerns about defects (folding, wrinkling, etc.).
