CN5 | Electrical Heating Alloys

Overview & Features

CN5 is a low resistance alloy with low ambient temperature but good workability and weldability. It is registered in JIS under the name GCN5.

Examples of Applications

Heaters (surface heating element), E-cigarettes, Sealers

Available Shapes

Manufacturable Range (COIL, SHEET)

Thickness

0.040-2.0mm

Width

3.0-100mm

Length

COIL or SHEET less than 2000mm

This is the manufacturing range of coils and sheets we manufacture.

Standard

Chemical Composition

Physical Properties

Mechanical Properties

Standards

Unless otherwise specified, we manufacture in accordance with JIS standards.

JIS

GCN5R (C2532)

DIN

CuNi2, 2.0802

Other names

ALLOY 30

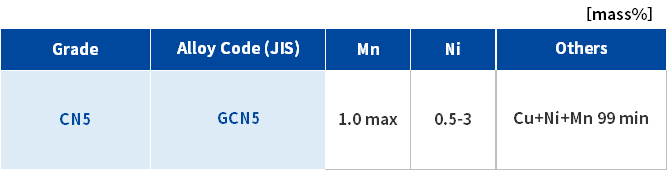

Chemical Composition

Physical Properties

Density

8.9 g/cm³

Volume Resistivity

0.05 μΩ･m

Magnetism

Non-magnetism

Mechanical Properties

The hardness of the annealed finish is [under 120 HV ], but we can provide hard materials upon your request.

*In the case of ultra-thin foil, soft materials such as annealed and 2B finish may not be available due to concerns about defects (folding, wrinkling, etc.).
