Overview & Features

nanoMAG™a stainless steel combines "extremely high strength" and "excellent soft magnetic properties" through our proprietary grain size refining technology. It is five times stronger than electromagnetic soft iron, so it can also be used for applications such as rotor cores, which are subjected to strong centrifugal force due to high-speed rotation.

Main features of nanoMAG™:

(1)Extremely High Strength
Tensile Strength（TS）2000Mpa class(Equivalent or superior to SUS301-EH)

(2)Excellent Soft Magnetic Properties
Maximum flux density　1.5T(Equivalent to ferritic stainless steels)

(3)Good Corrosion Resistance
Equivalent or superior to ferritic stainless steels.

Examples of Applications

Rotor Cores, Motor Cores, Magnetic Shields

Available Shapes

Manufacturable Range (COIL, SHEET)

Thickness

0.020-0.12mm

Width

Under 250mm

Length

COIL or SHEET less than 2000mm

This is the manufacturing range of coils and sheets we manufacture.

Chemical Composition

Physical Properties

Mechanical Properties

Correlations between maximum magnetic flux density and Strength

Related Pages

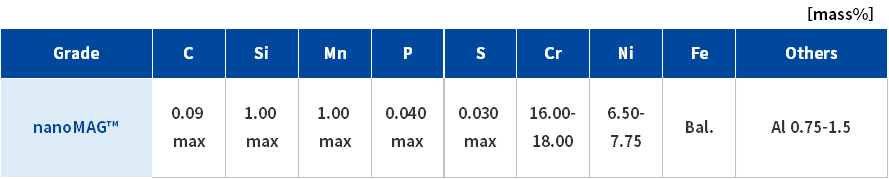

Chemical Composition

Physical Properties

Density

7.81 g/cm³

Specific Heat

420 J/(kg・K)

Electrical Resistivity

79 μΩ・cm

Young's Modulus

As rolled: 204 GPa, 　CH Condition: 260 GPa

Thermal Expansion

15.3×10^-6/K（0～100℃）

Thermal Conductivity

R仕上げ： 16 W/(m・K)

Melting Range

1414-1447 ℃

Magnetism

Soft Magnetism

Mechanical Properties

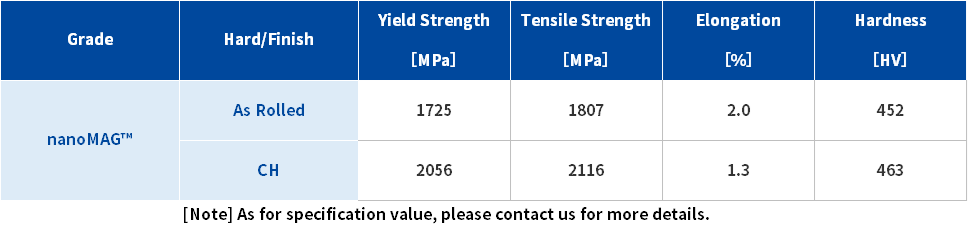

Typical values of mechanical properties after R-finish and CH treatment are shown in the table below.
Please contact us for specifications and other information.

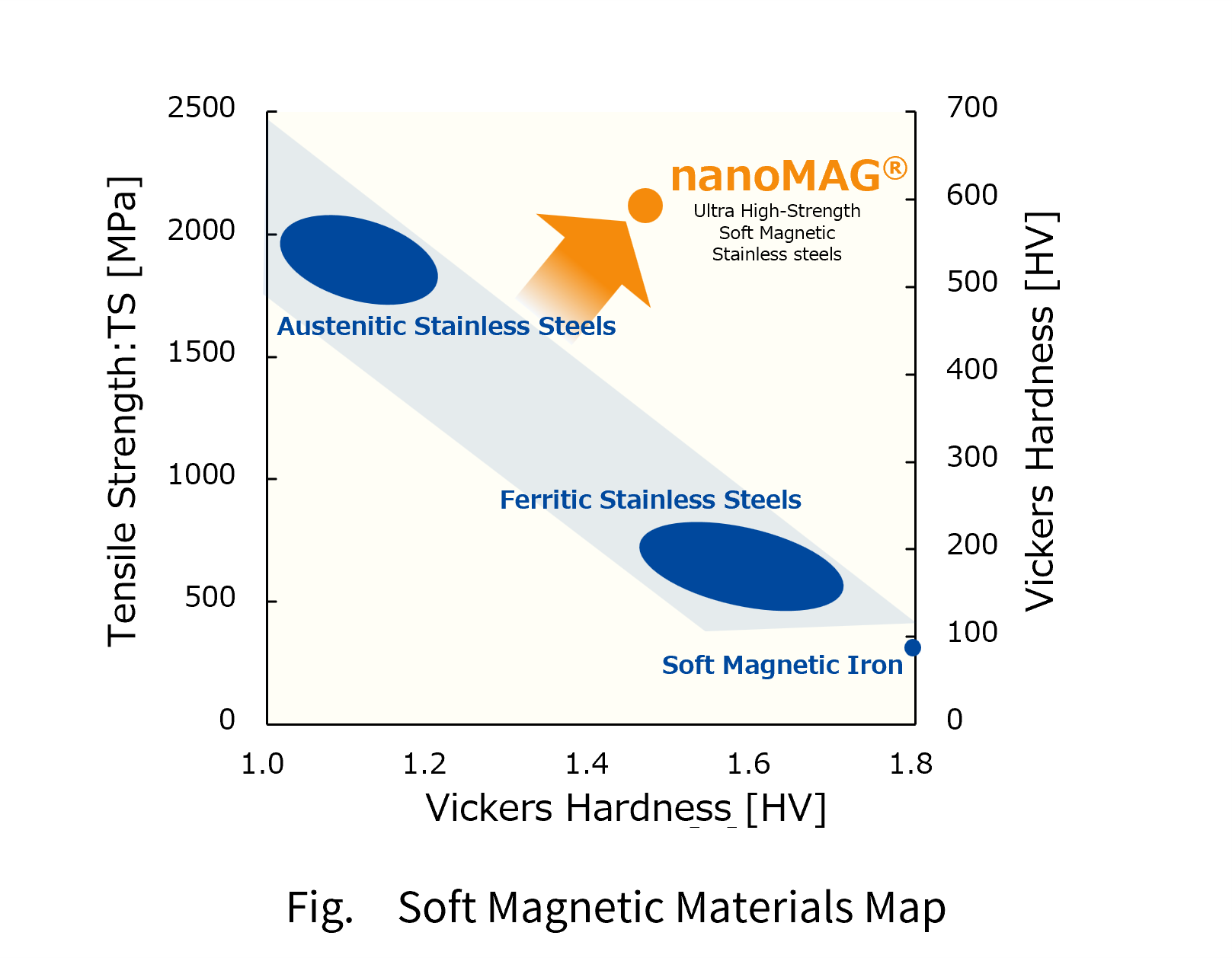

Correlations between maximum magnetic flux density and Strength

nanoMAG&trade has extremely high strength compared to ferritic stainless steels and soft magnetic iron steels of soft magnetic materials.
