TE-2 (Equivalent SKS81) | Alloy Tool Steel｜TOKUSHU KINZOKU EXCEL CO., LTD.(TOKKIN)

Cold Rolled Special Steel Strips

Carbon Tool Steels

TE-2 (Equivalent SKS81) | Alloy Tool Steel

Overview & Features

TE-2 is our original steel grade. It is an improved grade of alloy tool steel SKS81 with improved hardenability by adjusting the composition and strictly controlling the manufacturing history, and has finer carbides to improved sharpness and wear resistance.
It is used for razor blades and other high grade blades.

Examples of Applications

Razor Blades Replacement, Long Blades, High-Grade Blades

Available Shapes

Manufacturable Range (COIL, SHEET)

Thickness

0.010-2.0mm

Width

3.0-300mm

Length

COIL or SHEET less than 2000mm

This is the manufacturing range of coils and sheets we manufacture.

Standard

Chemical Composition

Physical Properties

Mechanical Properties

Quenching and Tempering

Standards

TOKKIN's own grade of steel.
［note 1］"M" at the end of JIS steel grade symbol means steel grade corresponding to JIS G3311 Cold rolled special steel strip, and M may be abbreviated in some cases.

JIS

SKS81M (G3311）*Equivalent Material

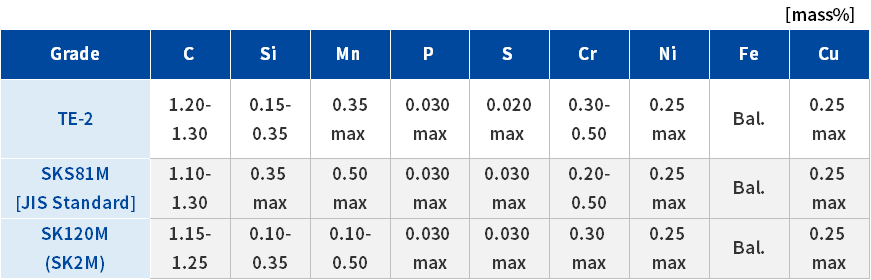

Chemical Composition

Physical Properties

The following values are typical values for high carbon steel(Fe-0.8C).

Density

7.84 g/cm³

Specific Heat

490 J/(kg・K)

Electrical Resistivity

18 μΩ・cm

Young's Modulus

208 GPa

Thermal Expansion

11.0×10^-6/K（0～100℃）

Thermal Conductivity

50.2 W/(m・K)

Magnetism

Strong

Mechanical Properties

Although cold rolled special steel is usually supplied in rolled condition (as-rolled or rolled finish), we can manufacture it from the softest annealed finish to the hardest full hardened finish. You can select the finish that best suits your needs and application.

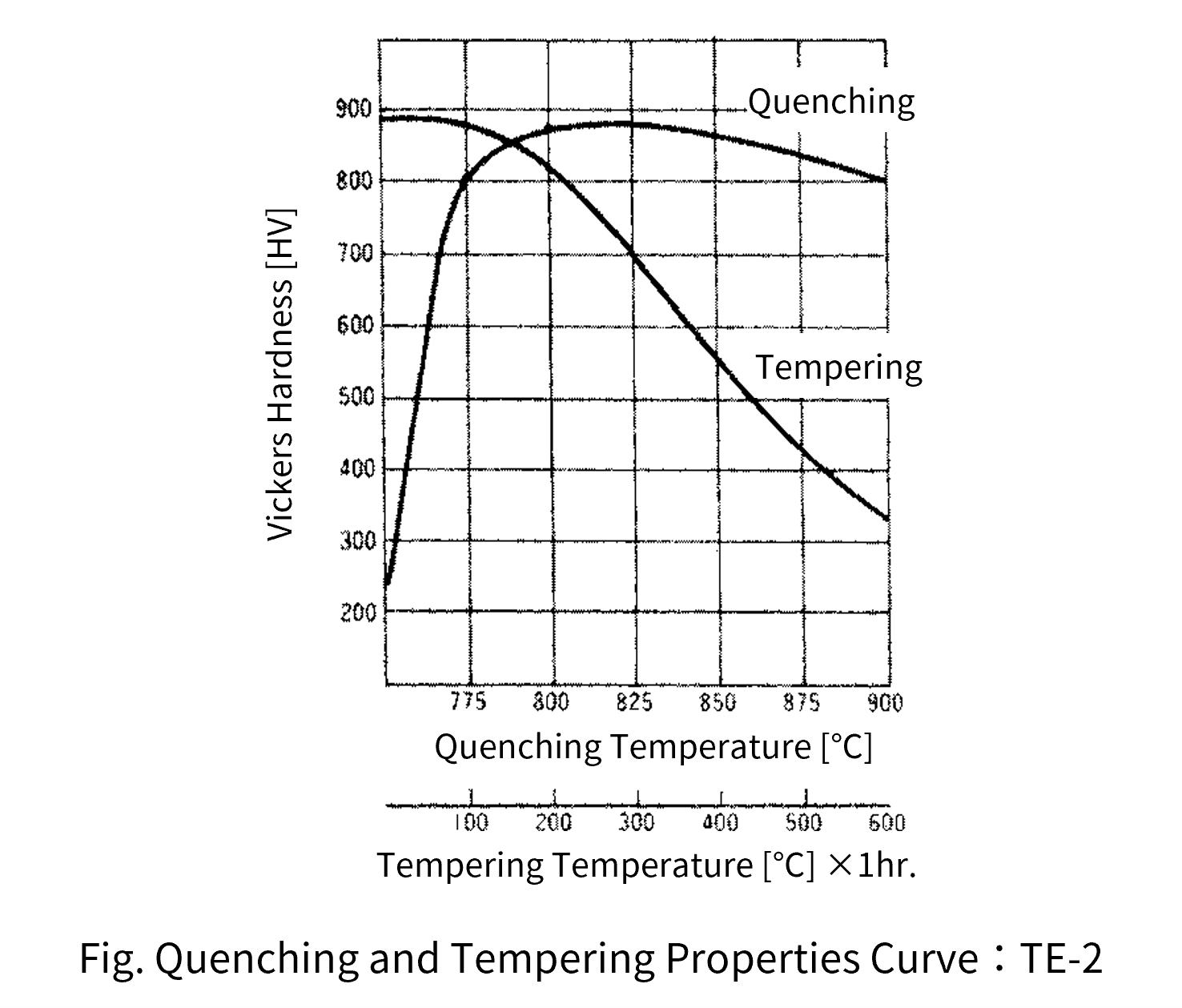

Quenching and Tempering

TE-2 is usually used by quenching.
The general quenching condition is ［Oil cooling at 790～850℃(Water Cooling at 760～820℃ ) ］.
After holding for tens of seconds to several minutes depending on sizes, shapes, required properties, and quenching method, cooling is performed.
Water cooling is harder to quench, but due to the risk of quenching distortion and quench cracking, oil cooling may be used in some cases.
Please select tempering temperature according to required hardness and toughness by referencing quenching and tempering curve.

Steels for Blades

Material which is used to make various blades such as razor blades, shaver blades, and medical blades. Depending on the application and required properties, you can choose from a variety of options such as high carbon steel or martensitic stainless steel.

Learn More

Cold Rolled Special Steel Strips

We manufacture carbon steel (SC material) and carbon tool steel (SK material) that conform to "JIS G 3311 Cold Rolled Special Steel Strip" and "JIS G 4802 Cold Rolled Steel Strip for Springs", as well as our own composition-adjusted steel grades for special applications.

Learn More
