NCH-1 | Electrical Resistance alloy

Non-Magnetism

Heat Resistance

High Corrosion Resistance

Product Lineup

Product Information

Request a Quote/Samples

Overview & Features

NCH-1 is a high resistance alloy with a low TCR and excellent toughness, heat resistance and corrosion resistance. Its brazeability and solderability are inferior.

Examples of Applications

Resistors, Temperature Sensors, Fuses

Available Shapes

Manufacturable Range (COIL, SHEET)

Thickness

0.040-1.8mm

Width

3.0-300mm

Length

COIL or SHEET less than 2000mm

This is the manufacturing range of coils and sheets we manufacture.
For inquiries regarding procurement items, please contact us.

Standard

Chemical Composition

Physical Properties

Mechanical Properties

Standards

Unless otherwise specified, we manufacture in accordance with JIS standards.
Overseas standards are listed as equivalent or similar to our materials, so please use them as a reference.

JIS

GNC108R (C2532)

DIN

NiCr8020, 2.4869

Cr20Ni80

Other names

ISA-CHROM 80

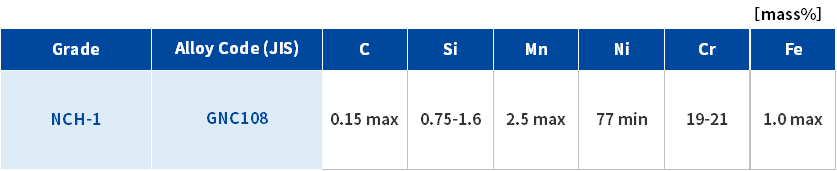

Chemical Composition

Physical Properties

Density

8.4 g/cm³

Volume Resistivity

1.08 μΩ･m

Temperature Coefficient of Resistance

50 ppm/K (23-100℃)

Magnetism

Non-magnetism

Mechanical Properties

The hardness of the annealed finish is [under 250 HV ], but we can provide hard materials upon your request.

*In the case of ultra-thin foil, soft materials such as annealed and 2B finish may not be available due to concerns about defects (folding, wrinkling, etc.).
