FCH-1 | Electrical Heating Alloys

Overview & Features

FCH-1 is the recommended grade for use at high temperatures. It has good oxidation resistance, but its high temperature strength is inferior to NCH.

Examples of Applications

Heaters (surface heating element), E-cigarettes, Sealers

Available Shapes

This item is available in wire form only.
Please contact us for detailed specifications.

Standard

Chemical Composition

Physical Properties

Mechanical Properties

Standards

Standards are listed as equivalent or similar to our materials, so please use them as a reference.

JIS

FCHRW1 (C2520)

Other names

Resistohm

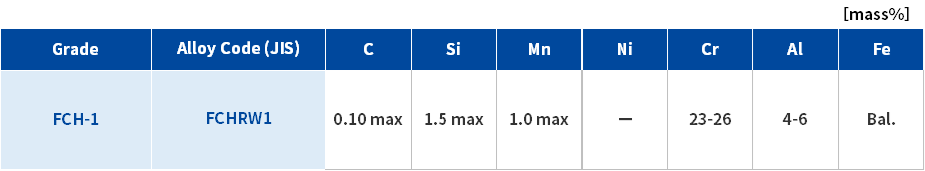

Chemical Composition

Physical Properties

Density

7.2 g/cm³

Volume Resistivity

1.42 μΩ･m

Maximum Ambient Temperature

1200℃

Magnetism

Strong

Mechanical Properties

The hardness of the annealed finish is [under 250 HV ], but we can provide hard materials upon your request.

*In the case of ultra-thin foil, soft materials such as annealed and 2B finish may not be available due to concerns about defects (folding, wrinkling, etc.).
