High-Precision Fatigue Test (Testing Service)

Overview & Features

We have a "High Precision Fatigue Testing Machine" which is suitable for evaluation of thin metals and precision parts by controlling extremely low load from 2.5N.
The tester is capable of performing the following tests as well as general test methods . (1) Specimen size and shape standards comply with not only JIS, but also other international standards.
(2) Evaluation of high precision parts
(3) Customized Jig for testing is also available
(4) Precise control by load and displacement control
(5) Comprehensive analysis including fracture surface observation
(6) Provide solutions to problems

In addition to our in-house basic research, we also offer contract testing of samples provided by our customers.
Please feel free to contact us if you have any requests.

Testing Machine Specifications

Measurement Example : Fatigue property evaluation by grain size control

Testing Machine Specifications

■ Equipment Name ：　Instron Electro-Puls E1000
■ Load ：　2.5～1000N
■ Amplitude　　　：　Max 40mm
■ Frequency　　　：　1～100Hz
■ stress direction ：　tensile・compression（Capable of handling bending stress）

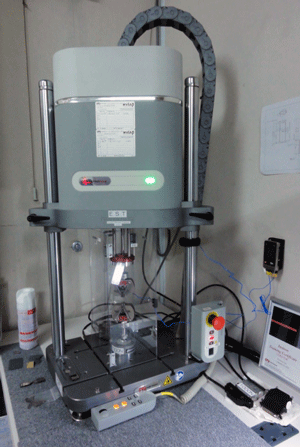

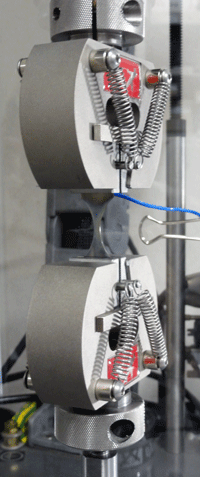

［Left］The entire test machine　　　［Right］Testing

Measurement Example : Fatigue property evaluation by grain size control

Fig Comparison of fatigue strength between ultrafine grain (nanoSUS 301) and normal grain SUS301
