Unique Technologies/High Performance Materials
Unique Technologies
Injection Needles, Vibration Motors/Haptics, Micro Oumps, Printer Components, Tact Switches/Membrane Switches, Injectors
Thickness
0.010-0.20mm *Contact sales if you need 0.20 mm-0.60 mm
Width
3.0-300mm
Length
COIL or SHEET less than 2000mm
This is the manufacturing range of coils and sheets we manufacture.

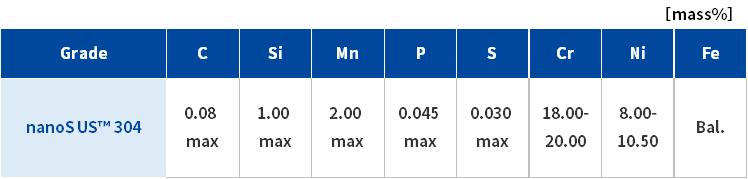

Chemical composition is in accordance with JIS SUS304.
Density
7.90 g/cm³
Specific Heat
502 J/(kg・K)
Electrical Resistivity
72 μΩ・cm
Young's Modulus
193 GPa
Thermal Expansion
17.3×10-6/K(0~100℃)
Thermal Conductivity
16.3 W/(m・K)
Melting Range
1380-1420 ℃
nanoSUS™ a stainless steel in which the crystal grain size of the material is refined to about 1μm. The control of microstructure contributes to improving various properties such as strength, fatigue properties, and workability."
This materials are possible to increase their hardness by rolling, they can be used as spring parts.
We offer not only thin stainless steel foils, but also propose the appropriate steel grade and temper depending on specific application and use requirements, such as strength, workablility, magnetism, and corrosion resistance.
